型号
Catalog No.
|
适用导线
Suitable
Conductor |

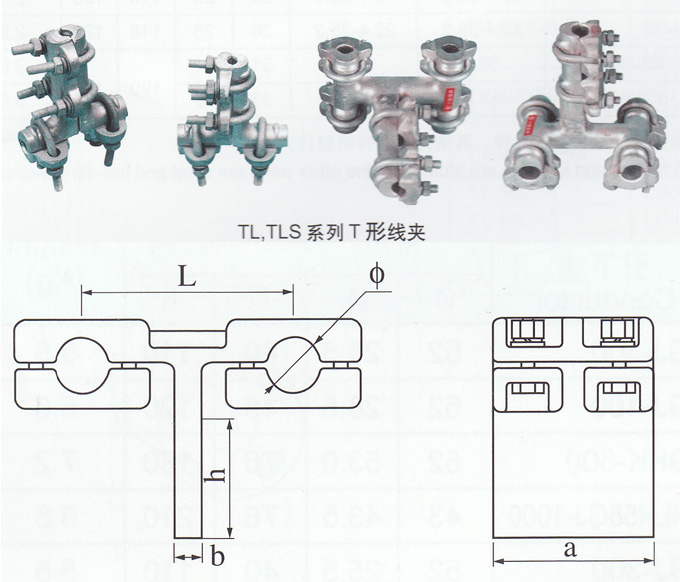

主要尺寸Dimensions(mm) |
参考重量
Weight
（kg） |
| Φ |
a |
h |
b |
L |
| TLS-240/120 |
LGJ-240 |
22 |
50 |
80 |
14 |
120 |
3.8 |
| TLS-300/120 |
LGJ-300 |
25 |
63 |
100 |
16 |
120 |
4.1 |
| TLS-400/120 |
LGJ-400 |
28 |
63 |
100 |
16 |
120 |
4.2 |
| TLS-500/120 |
LGJ-500 |
31 |
80 |
100 |
18 |
120 |
4.3 |
| TLS-630/120 |
LGJ-630 |
35 |
100 |
100 |
18 |
120 |
4.5 |
| TLS-800/120 |
LGJ-800 |
39 |
125 |
125 |
20 |
120 |
4.8 |
| TLS-400N/120 |
NAHLGJQ-400 |
29 |
125 |
125 |
20 |
120 |
5.0 |
| TLS-600K/120 |
LGKK-600 |
52 |
125 |
125 |
20 |
120 |
5.5 |
| TLS-900K/120 |
LGKK-900 |
50 |
125 |
125 |
20 |
120 |
5.4 |
| TLS-1400/120 |
LGJ-1400 |
52 |
125 |
125 |
20 |
120 |
5.5 |
| TLS-240/200 |
LGJ-240 |
22 |
50 |
80 |
14 |
200 |
5.0 |
| TLS-300/200 |
LGJ-300 |
25 |
63 |
100 |
16 |
200 |
5.3 |
| TLS-400/200 |
LGJ-400 |
28 |
63 |
100 |
16 |
200 |
5.4 |
| TLS-500/200 |
LGJ-500 |
31 |
80 |
100 |
18 |
200 |
5.5 |
| TLS-630/200 |
LGJ-630 |
35 |
100 |
100 |
18 |
200 |
5.7 |
| TLS-800/200 |
LGJ-800 |
39 |
125 |
125 |
20 |
200 |
6.0 |
| TLS-400N/200 |
NAHLGJQ-400 |
29 |
125 |
125 |
20 |
200 |
6.2 |
| TLS-630N/200 |
NAHLGJQ-630 |
35 |
150 |
150 |
24 |
200 |
8.8 |
| TLS-600K/200 |
LGKK-600 |
52 |
125 |
125 |
20 |
200 |
6.8 |
| TLS-900K/200 |
LGKK-900 |
50 |
125 |
125 |
20 |
200 |
6.6 |
| TLS-1000N/200 |
NAHLGJQ-1000 |
43 |
150 |
150 |
24 |
200 |
6.2 |
| TLS-1400/200 |
LGJ-1400 |
52 |
125 |
125 |
20 |
200 |
6.8 |
| TLS-1440N/200 |
NAHLGJQ-1440 |
52 |
150 |
150 |
24 |
200 |
6.5 |
| TLS-240/400 |
LGJ-240 |
22 |
50 |
80 |
14 |
400 |
6.5 |
| TLS-300/400 |
LGJ-300 |
25 |
63 |
100 |
16 |
400 |
6.8 |
| TLS-400/400 |
LGJ-400 |
28 |
63 |
100 |
16 |
400 |
6.9 |
| TLS-400N/400 |
NAHLGJQ-500 |
29 |
125 |
125 |
20 |
400 |
7.7 |
| TLS-500/400 |
LGJ-500 |
31 |
80 |
100 |
18 |
400 |
7.1 |
| TLS-630/400 |
LGJ-630 |
35 |
100 |
100 |
18 |
400 |
7.3 |
| TLS-800/400 |
LGJ-800 |
39 |
125 |
125 |
20 |
400 |
7.5 |
| TLS-600K/400 |
LGKK-600 |
52 |
125 |
125 |
20 |
400 |
7.2 |
| TLS-900K/400 |
LGKK-900 |
50 |
125 |
125 |
20 |
400 |
7.3 |
| TLS-1400/400 |
LGJ-1400 |
52 |
125 |
125 |
20 |
400 |
7.2 |
| TLS-1440N/400 |
NAHLGJQ-1440 |
52 |
150 |
150 |
24 |
400 |
7.5 | 线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium,the other parts are hot-dip galvanized steel. |
