户内矩形母线固定金具(平放式)

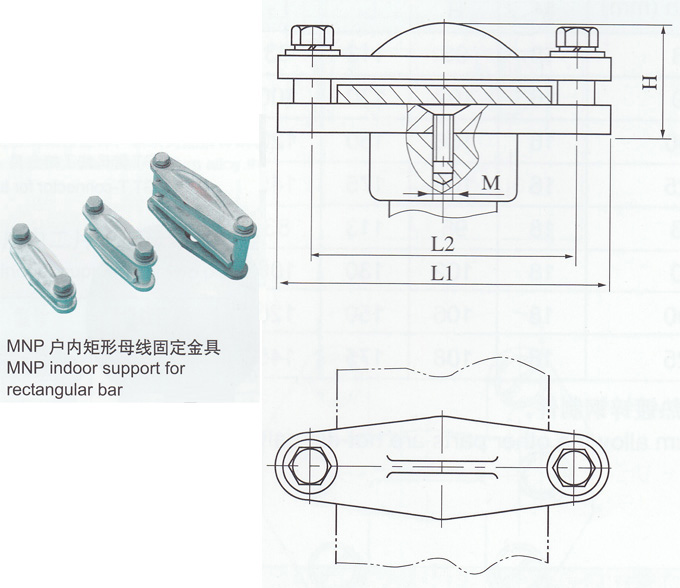

1)户内一片矩形母线固定金具(平放式)
Indoor supports for single pieces bar(horizontal setting)
型号Catalog No.

母线宽度

Bus width(mm)

主要尺寸Dimensions(mm)

重量Weight(kg)

M H L1 L2
MNP-101

63

10 38 113 83

0.4

MNP-102

80

10 42 130 100

0.5

MNP-103

100

10 46 150 120

0.6

MNP-104

125

10 48 175 145

0.6

MNP-105

63

16 38 113 83

0.4

MNP-106

80

16 42 130 100

0.5

MNP-107

100

16 46 150 120

0.6

MNP-108

125

16 48 175 145

0.6

上盖板为铝合金件,其余为热镀锌钢制件。
The upper cover is aluminium alloy,the other parts are hot-dip galvanized steel.

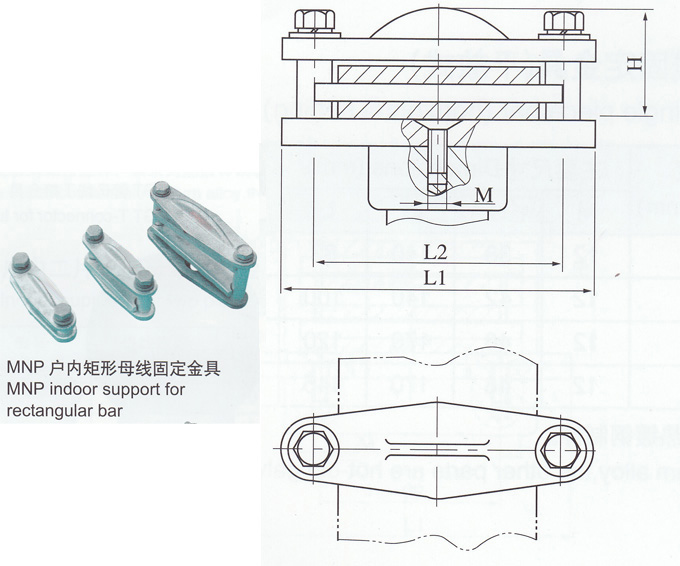

2)户内二片矩形母线固定金具(平放式)
Indoor supports for two pieces bar(horizontal setting)
型号Catalog No.

母线宽度

Bus width(mm)

主要尺寸Dimensions(mm)

重量Weight(kg)

M H L1 L2
MNP-201

63

10 58 113 83

0.7

MNP-202

80

10 62 130 100

0.8

MNP-203

100

10 66 150 120

1.0

MNP-204

125

10 68 175 145

1.0

MNP-205

63

16 58 113 83

0.7

MNP-206

80

16 62 130 100

0.8

MNP-207

100

16 66 150 120

1.0

MNP-208

125

16 68 175 145

1.0

上盖板为铝合金件,隔板为铝制件,其余为热镀锌钢制件。
The upper cover is aluminium alloy,the other parts are hot-dip galvanized steel.

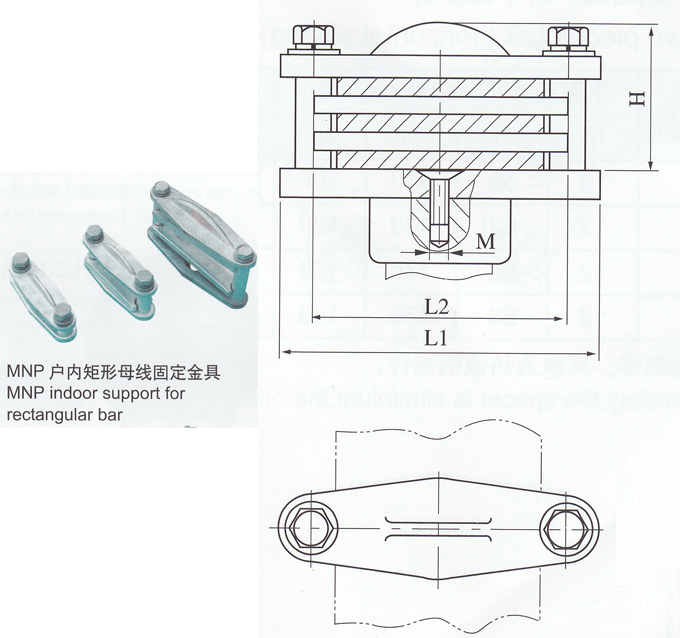

3)户内三片矩形母线固定金具(平放式)
Indoor supports for three pieces bar(horizontal setting)
型号Catalog No.

母线宽度

Bus width(mm)

主要尺寸Dimensions(mm)

重量Weight(kg)

M H L1 L2
MNP-301

63

10 78 113 83

0.9

MNP-302

80

10 82 130 100

0.9

MNP-303

100

10 86 150 120

1.2

MNP-304

125

10 88 175 145

1.3

MNP-305

63

16 78 113 83

0.8

MNP-306

80

16 82 130 100

0.9

MNP-307

100

16 86 150 120

1.1

MNP-308

125

16 88 175 145

1.2

上盖板为铝合金件,隔板为铝制件,其余为热镀锌钢制件。
The upper cover is aluminium alloy,the other parts are hot-dip galvanized steel.

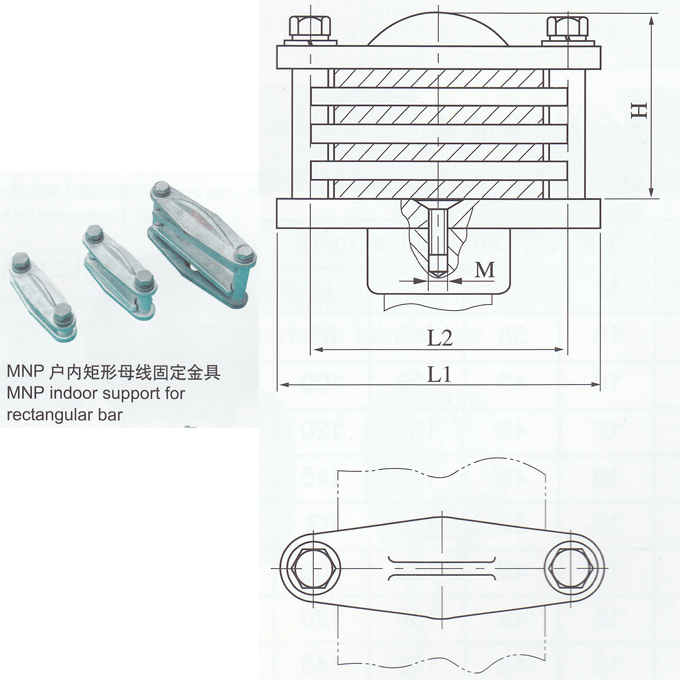

4)户内四片矩形母线固定金具(平放式)
Indoor supports for four pieces bar(horizontal setting)
型号Catalog No.

母线宽度

Bus width(mm)

主要尺寸Dimensions(mm)

重量Weight(kg)

M H L1 L2
MNP-401

63

16 98 113 83

1.1

MNP-402

80

16 102 130 100

1.1

MNP-403

100

16 106 150 120

1.4

MNP-404

125

16 108 175 145

1.5

MNP-405

63

18 98 113 83

1.0

MNP-406

80

18 102 130 100

1.1

MNP-407

100

18 106 150 120

1.2

MNP-408

125

18 108 175 145

1.3

上盖板为铝合金件,其余为热镀锌钢制件。
The upper cover is aluminium alloy,the other parts are hot-dip galvanized steel.
