碗头挂板

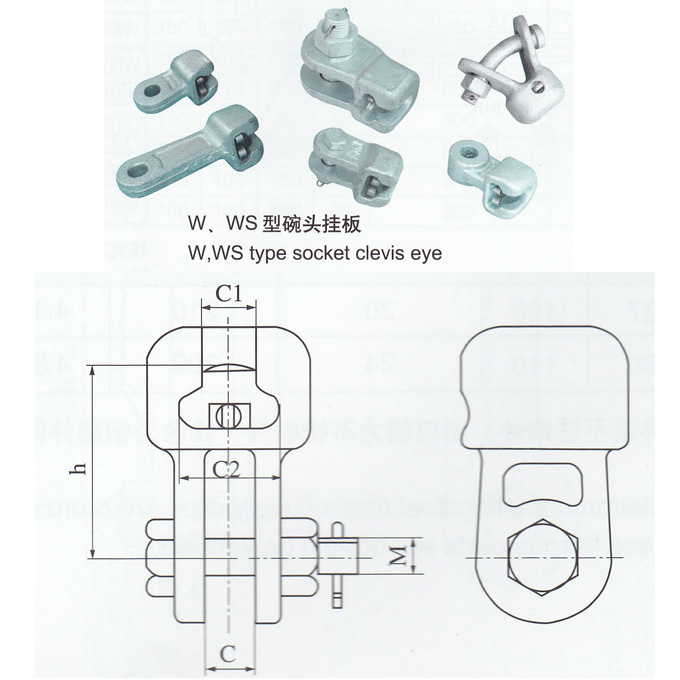

Socket-clevis Eye

型号 Catalog No.	主要尺寸Dimensions(mm)					连接标记 Designated size of coupling	标称破坏载荷 Rated Failing load (kN)	重量 Weight (kg)
型号 Catalog No.	C	C1	C2	M	h	连接标记 Designated size of coupling	标称破坏载荷 Rated Failing load (kN)	重量 Weight (kg)
WS-7	16	19.2	34.5	16	70	16	70	0.97
WS-10	20	19.2	34.5	18	85	16	100	1.70
WS-12G	20	19.2	34.5	18	85	16	120	1.70
WS-12	24	23.0	42.5	22	85	16	120	3.81
WS-12X	24	19.2	34.5	22	90	16	120	3.10
WS-12A	20	19.2	34.5	22	85	16	120	1.80
WS-16	26	23.0	42.5	24	95	20	160	2.64
WS-20	30	27.5	51.0	27	100	24	200	4.30
WS-20DF	30	23.0	42.5	27	100	20	200	4.50
WS-30	36	27.5	51.0	36	110	24	300	5.70
WS-16G	22	23.0	42.5	24	95	20	160	2.64
WS-21G	24	27.5	51.0	24	100	24	210	3.50
WS-32G	32	27.5	51.0	30	110	24	320	4.80
WS-42	36	32.0	59.0	36	120	28	420	5.60

碗头挂板为可锻铸铁件或铸钢件，弹簧销为青铜件或不锈钢件，闭口销为不锈钢件，钢铁制件热镀锌。
The socket-clevis eyes are malleableiron orcastingsteel.these curity clips are bronze or
stainless steel.cotter pins are stainiess.ferrous parts are hot-dip galvanized.
