型号
Catalog
No. |
适用导线
Suitable
Conducto |
铝管尺寸(mm) |
铜管尺寸(mm) |
握力
Slip St12.5rength
≥(kN) |

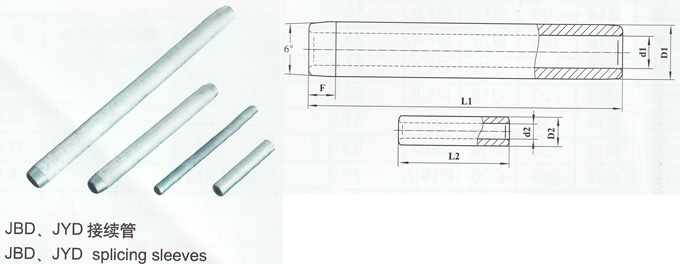

| L1 |
D1 |
d1 |
L2 |
D2 |
d2 |
| JYD-50/8 |
LGJ-50/8 |
280 |
30 |
18.0 |
80 |
14 |
7.0 |
16 |
| JYD-50/30 |
LGJ-50/30 |
300 |
34 |
22.0 |
100 |
20 |
11.6 |
40 |
| JYD-70/10 |
LGJ-70/10 |
300 |
30 |
18.0 |
80 |
16 |
8.3 |
22 |
| JYD-70/40 |
LGJ-70/40 |
330 |
34 |
22.0 |
110 |
20 |
13.6 |
50 |
| JYD-95/15 |
LGJ-95/15 |
320 |
32 |
21.0 |
80 |
18 |
8.4 |
30 |
| JYD-95/20 |
LGJ-95/20 |
340 |
32 |
21.0 |
80 |
18 |
9.3 |
35 |
| JYD-95/55 |
LGJ-95/55 |
420 |
36 |
24.0 |
120 |
22 |
16.0 |
70 |
| JYD-120/7 |
LGJ-120/7 |
320 |
|
16.0 |
80 |
14 |
6.5 |
25 |
| JYD-120/20 |
LGJ-120/20 |
380 |
30 |
17.0 |
80 |
16 |
9.3 |
35 |
| JYD-120/25 |
LGJ-120/25 |
380 |
17.0 |
100 |
16 |
10.5 |
40 |
| JYD-120/70 |
LGJ-120/70 |
450 |
40 |
26.0 |
130 |
24 |
18.0 |
80 |
| JYD-150/8 |
LGJ-150/8 |
360 |
30 |
17.5 |
80 |
14 |
7.0 |
30 |
| JYD-150/20 |
LGJ-150/20 |
400 |
18.0 |
80 |
16 |
9.3 |
40 |
| JYD-150/25 |
LGJ-150/25 |
400 |
19.0 |
90 |
18 |
10.5 |
50 |
| JYD-150/35 |
LGJ-150/35 |
440 |
19.0 |
10 |
18 |
12.5 |
60 |
| JYD-185/10 |
LGJ-185/10 |
380 |
32 |
19.5 |
80 |
16 |
7.8 |
35 |
| JYD-185/25 |
LGJ-185/25 |
410 |
20.5 |
90 |
18 |
10.5 |
50 |
| JYD-185/30 |
LGJ-185/30 |
420 |
20.5 |
100 |
18 |
11.6 |
60 |
| JYD-185/45 |
LGJ-185/45 |
480 |
21.0 |
120 |
20 |
14.0 |
70 |
| JYD-210/10 |
LGJ-210/10 |
400 |
34 |
20.5 |
80 |
16 |
8.3 |
40 |
| JYD-210/25 |
LGJ-210/25 |
420 |
21.5 |
90 |
20 |
11.2 |
60 |
| JYD-210/35 |
LGJ-10/35 |
450 |
22.0 |
100 |
20 |
12.5 |
70 |
| JYD-210/50 |
LGJ-210/50 |
480 |
23.5 |
120 |
22 |
15.0 |
80 |
| JYD-240/30 |
LGJ-240/30 |
450 |
36 |
23.0 |
100 |
20 |
12.0 |
40 |
| JYD-240/40 |
LGJ-240/40 |
470 |
23.0 |
100 |
20 |
13.3 |
80 |
| JYD-240/55 |
LGJ-240/55 |
490 |
24.0 |
120 |
22 |
16.0 |
100 |
| JYD-300/15 |
LGJ-300/15 |
440 |
40 |
24.5 |
70 |
18 |
8.4 |
65 |
| JYD-300/20 |
LGJ-300/20 |
450 |
25.0 |
80 |
18 |
9.8 |
70 |
| JYD-300/25 |
LGJ-300/25 |
480 |
25.5 |
90 |
20 |
11.2 |
80 |
| JYD-300/40 |
LGJ-300/40 |
490 |
25.5 |
100 |
20 |
13.3 |
90 |
| JYD-300/50 |
LGJ-300/50 |
510 |
26.0 |
10 |
22 |
15.0 |
100 |
| JYD-300/70 |
LGJ-300/70 |
560 |
42 |
27.0 |
130 |
24 |
18.0 |
120 |
| JYD-400/20 |
LGJ-400/20 |
510 |
45 |
28.5 |
80 |
18 |
9.8 |
80 |
| JYD-400/25 |
LGJ-400/25 |
520 |
28.5 |
90 |
20 |
11.2 |
90 |
| JYD-400/35 |
LGJ-400/35 |
540 |
28.5 |
100 |
22 |
12.5 |
100 |
| JYD-400/50 |
LGJ-400/50 |
570 |
29.5 |
120 |
24 |
15.4 |
120 |
| JYD-400/65 |
LGJ-400/65 |
580 |
48 |
29.5 |
130 |
26 |
17.2 |
130 |
| JYD-500/35 |
LGJ-500/35 |
580 |
52 |
31.5 |
100 |
22 |
12.5 |
110 |
| JYD-500/45 |
LGJ-500/45 |
610 |
31.5 |
110 |
24 |
14.0 |
120 |
| JYD-500/65 |
LGJ-500/65 |
640 |
32.5 |
130 |
26 |
17.2 |
150 |
| JYD-630/45 |
LGJ-630/45 |
650 |
60 |
35.5 |
110 |
24 |
14.0 |
140 |
| JYD-630/55 |
LGJ-630/55 |
680 |
36.0 |
120 |
26 |
16.0 |
155 |
| JYD-800/55 |
LGJ-800/55 |
730 |
65 |
40.0 |
120 |
26 |
16.0 |
180 |
| JYD-800/70 |
LGJ-800/70 |
760 |
40.5 |
130 |
26 |
18.0 |
200 |
外管为铝制件，内管为热镀锌钢制件。
The outer sleeve are aluminium,the in nersleeve is hot-dip galvanized steel.
