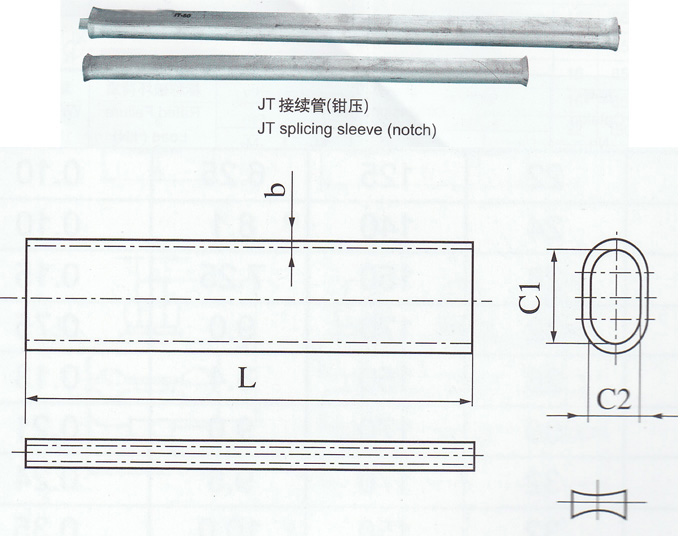

接续管(钢芯铝绞线用、钳压)
Splicing Sleeves for ACSR Conductor(Compression With Plicers) |
 |
型号
Catalog
No. |
适用导线
Suitable
Conducto |
主要尺寸Dimensions(mm) |
握力
Slip Strength
≥(kN) |
重量
Weight
(kg) |
| b |
C1 |
C2 |
L |
| JT-10/2 |
LGJ-10/2 |
1.7 |
11.0 |
5.0 |
170 |
3.9 |
0.05 |
| JT-16/3 |
LGJ-16/3 |
1.7 |
14.0 |
6.0 |
210 |
5.8 |
0.07 |
| JT-25/4 |
LGJ-25/4 |
1.7 |
16.0 |
7.8 |
270 |
8.8 |
0.08 |
| JT-35/6 |
LGJ-35/6 |
2.1 |
18.0 |
8.8 |
340 |
12 |
0.17 |
| JT-50/8 |
LGJ-50/8 |
2.3 |
22.0 |
10.5 |
420 |
16 |
0.23 |
| JT-70/10 |
LGJ-70/10 |
2.6 |
26.0 |
12.5 |
500 |
22 |
0.34 |
| JT-95/15 |
LGJ-95/15 |
2.6 |
31.0 |
15.0 |
690 |
33 |
0.52 |
| JT-95/20 |
LGJ-95/20 |
2.6 |
31.5 |
15.2 |
690 |
35 |
0.55 |
| JT-120/7 |
LGJ-120/7 |
3.1 |
33.0 |
16.0 |
910 |
26 |
0.60 |
| JT-120/20 |
LGJ-120/20 |
3.1 |
35.0 |
17.0 |
910 |
39 |
0.91 |
| JT-150/8 |
LGJ-150/8 |
3.1 |
36.0 |
17.5 |
940 |
31 |
1.05 |
| JT-150/20 |
LGJ-150/20 |
3.1 |
37.0 |
18.0 |
940 |
44 |
1.10 |
| JT-150/25 |
LGJ-150/25 |
3.1 |
39.0 |
19.0 |
940 |
51 |
1.15 |
| JT-185/10 |
LGJ-185/10 |
3.4 |
40.0 |
19.5 |
1040 |
39 |
1.40 |
| JT-185/25 |
LGJ-185/25 |
3.4 |
43.0 |
21.0 |
1040 |
56 |
1.42 |
| JT-185/30 |
LGJ-185/30 |
3.4 |
43.0 |
21.0 |
1040 |
61 |
1.50 |
| JT-210/10 |
LGJ-210/10 |
3.6 |
43.0 |
21.0 |
1070 |
43 |
1.52 |
| JT-210/25 |
LGJ-210/25 |
3.6 |
45.0 |
21.5 |
1070 |
63 |
1.58 |
| JT-210/35 |
LGJ-210/35 |
3.6 |
46.0 |
22.0 |
1070 |
71 |
1.62 |
| JT-240/30 |
LGJ-240/30 |
3.9 |
48.0 |
23.5 |
540 |
72 |
1.00 |
| JT-240/40 |
LGJ-240/40 |
3.6 |
48.0 |
23.5 |
540 |
79 |
1.00 |
铝制件。
Materrial is aluminium. |
